Background App Needs Access? Use Managed Identity

This trip continues from:

Client Credentials Flow using App Registrations (D365 to Middleware API)

Now we replace caller authentication with:

Managed Identity, without a client secret and without a caller-side app registration.

Architecture

D365 -> Azure Function (Managed Identity) -> Middleware API

The Azure Function becomes the trusted runtime component. It uses its managed identity to request a token for the Middleware API.

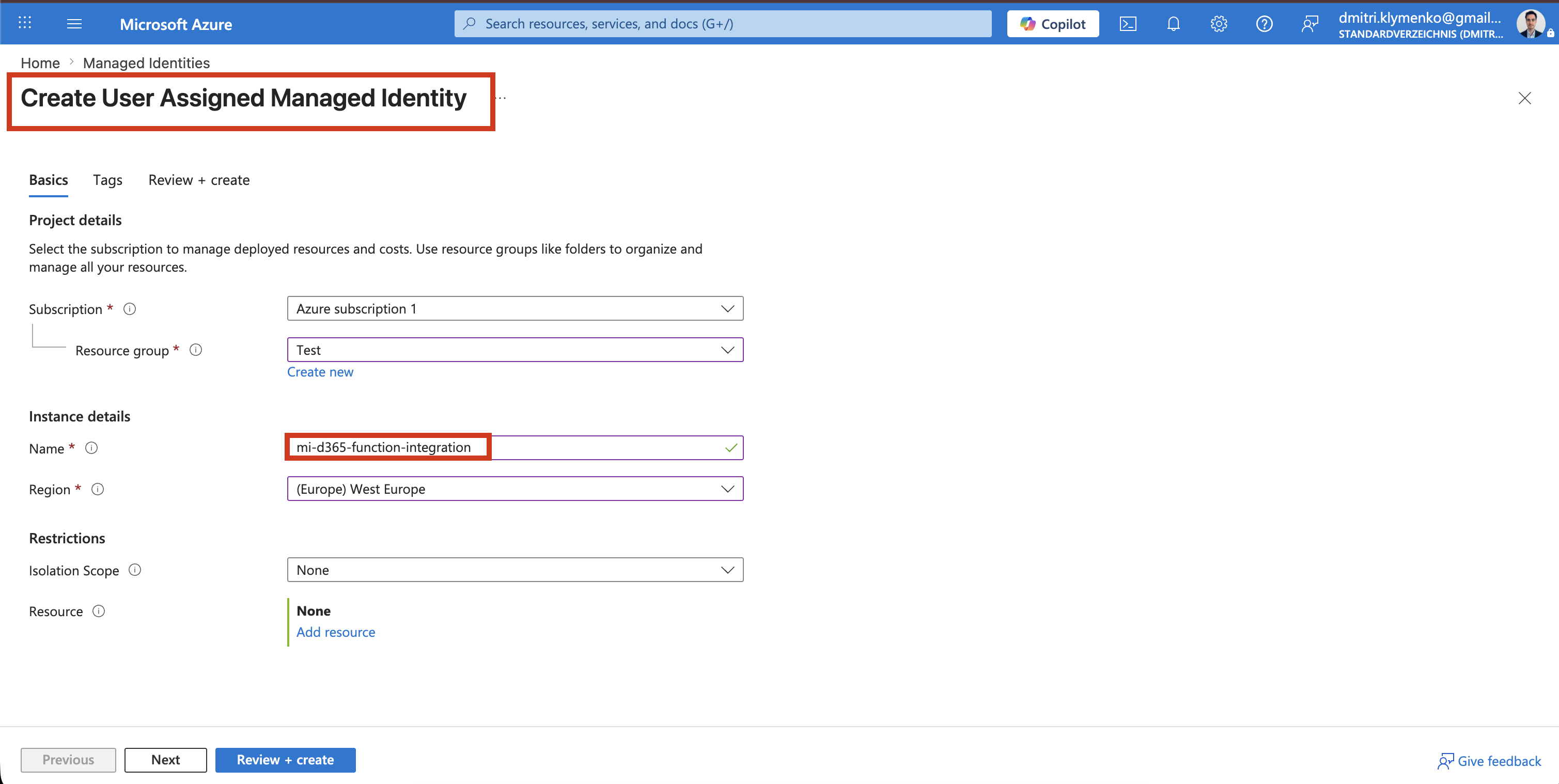

Create User Assigned Managed Identity

Go to:

Azure Portal > Managed Identities > Create

Create the identity:

Type: User Assigned Managed Identity
Name: mi-d365-function-integration

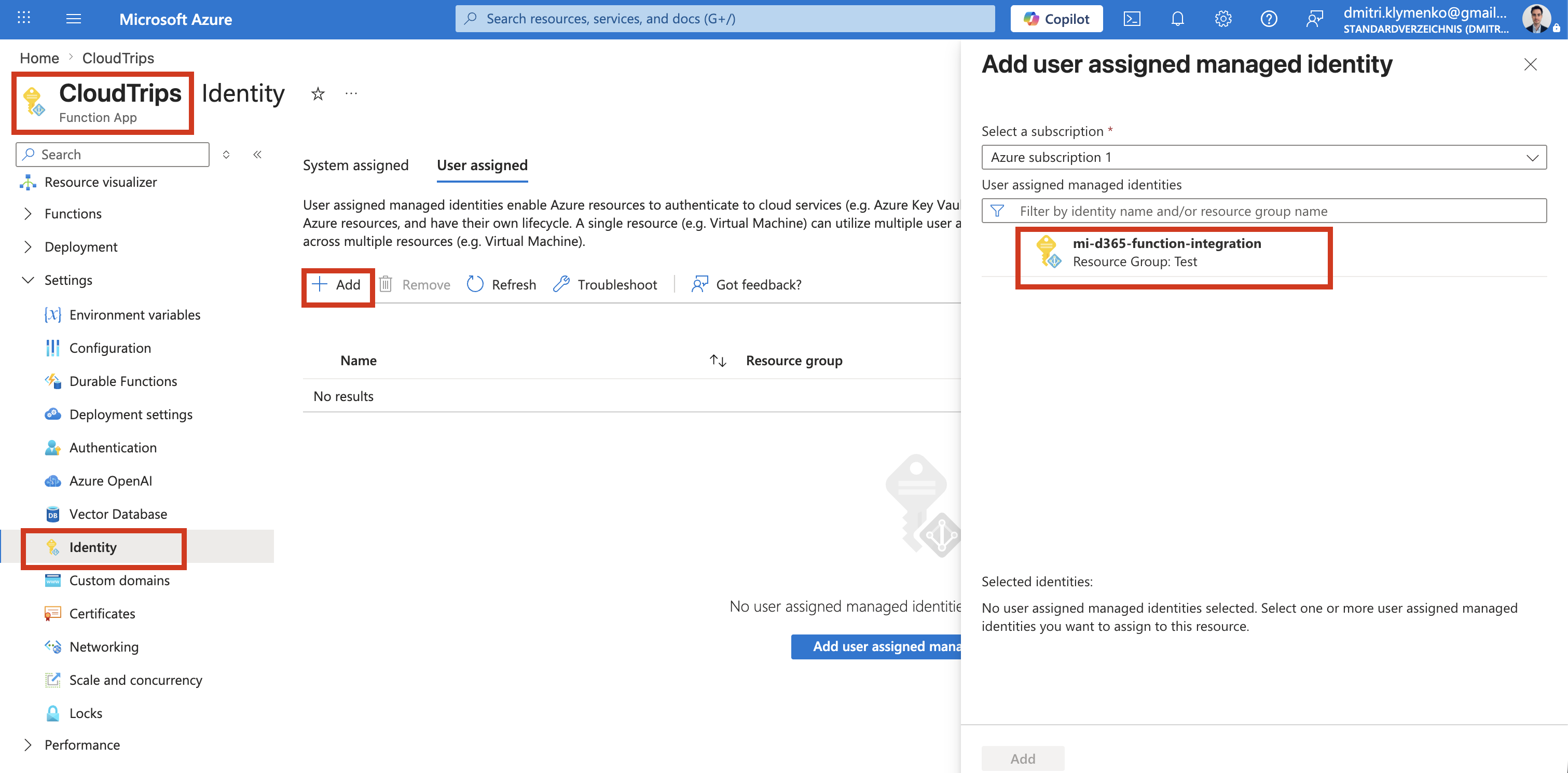

Assign Managed Identity to Azure Function

Open the Function App and go to:

Function App > Identity > User assigned > Add

Attach:

mi-d365-function-integration

The Function App can now authenticate as this managed identity.

Identity Concept

There are three related identity objects that are easy to confuse.

App Registration Object ID

• definition layer
• stores application configuration
• used for OAuth setup
• not used for runtime access assignment

Enterprise Application Object ID

• runtime identity in the tenant
• also called the Service Principal
• represents the actual identity that receives permissions
• used in authorization

Managed Identity Object ID

• automatically created Service Principal
• represents the Azure resource identity
• used for authentication and Microsoft Graph operations

Important rule:

Only Service Principal Object IDs are used in Graph API calls and App Role assignments

Assign App Role to Managed Identity

This is the core step.

The Middleware API already exposes an App Role such as:

middleware.access

Now we grant that role to the managed identity.

Use Microsoft Graph through Azure CLI:

az rest --method POST \
  --uri "https://graph.microsoft.com/v1.0/servicePrincipals/<MI_OBJECT_ID>/appRoleAssignments" \
  --body '{
    "principalId": "<MI_OBJECT_ID>",
    "resourceId": "<MIDDLEWARE_API_SP_OBJECT_ID>",
    "appRoleId": "<Middleware.Access_ROLE_ID>"
  }'

What Each Value Means

Field	Meaning

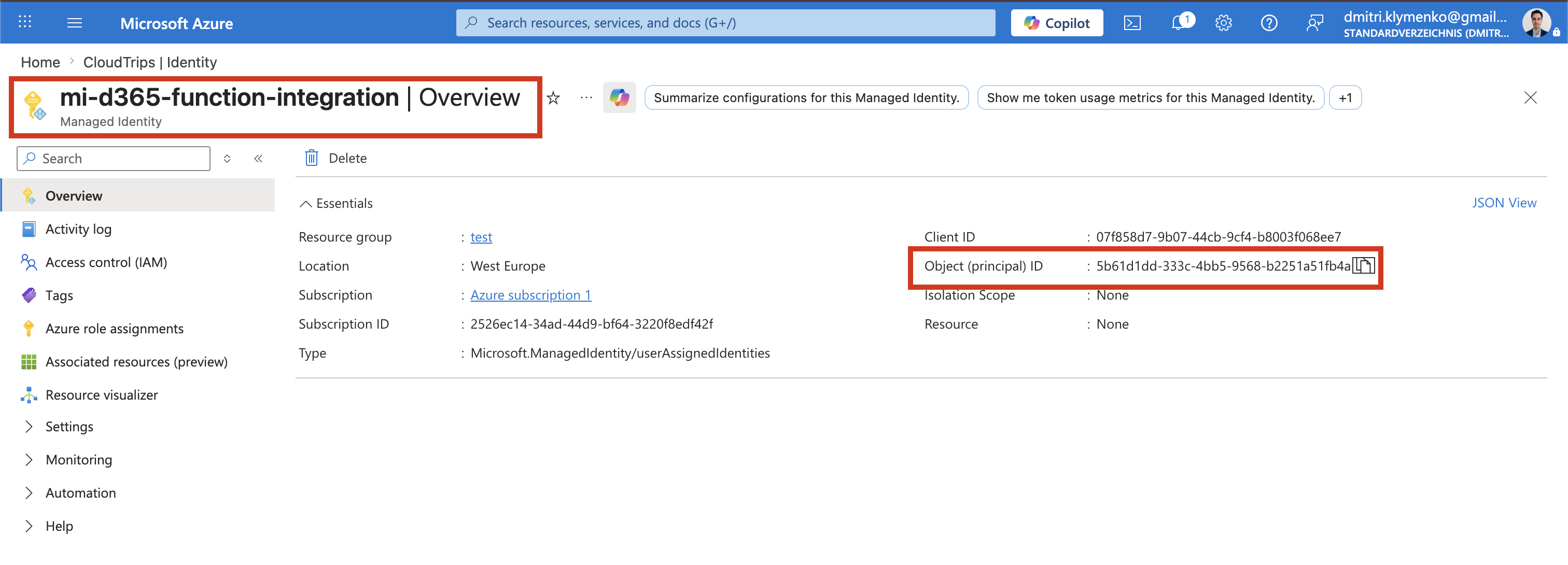

principalId	Managed Identity Service Principal Object ID, the caller

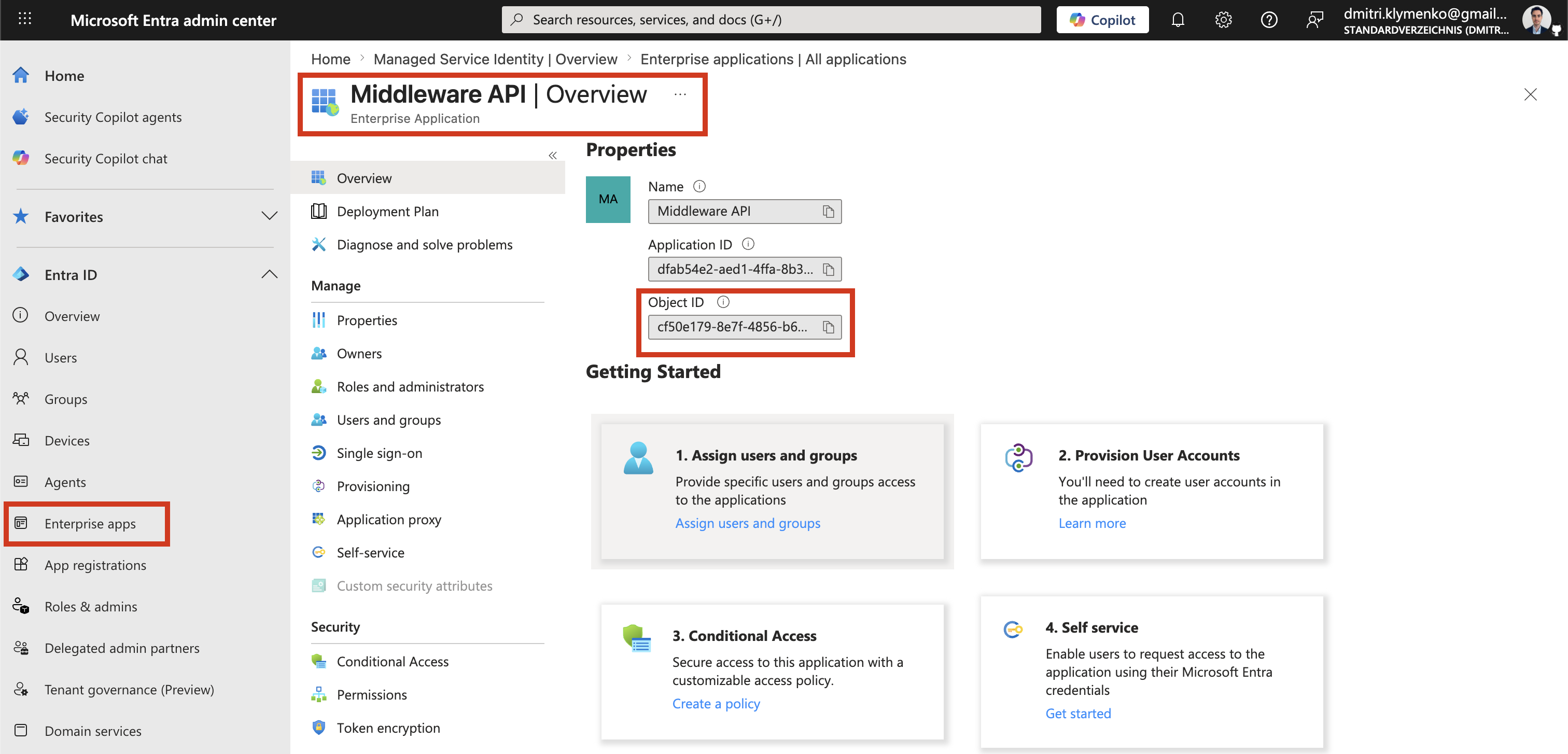

resourceId	Middleware API Service Principal Object ID, the target API

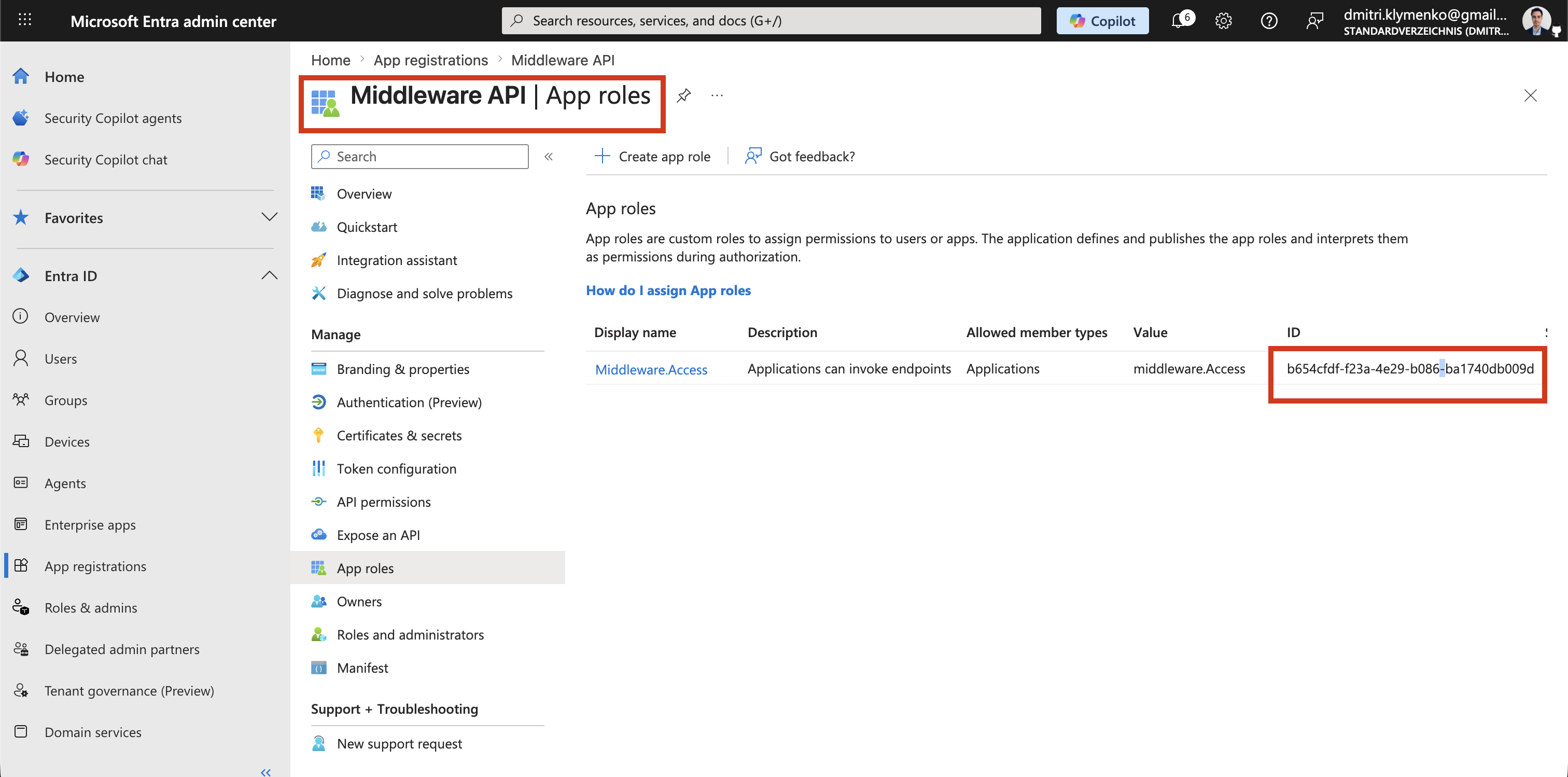

appRoleId	App Role ID for Middleware.Access

Important Clarification

In Entra ID, there are multiple Object IDs.

The App Registration Object ID defines configuration.

The Enterprise Application Object ID is the Service Principal used for runtime authorization.

The Managed Identity Object ID is also a Service Principal. This is the object we use as the caller in the POST request above.

Therefore:

Managed Identity Object ID = Service Principal Object ID

Runtime Behavior

When the Azure Function executes:

• Managed Identity requests a token automatically
• Entra ID issues an access token
• token contains the assigned App Role
• Middleware API validates the audience and role

Managed Identity -> Entra ID -> Access Token -> Middleware API

Key Comparison

Approach	Secrets	Caller App Registration	Security
Client Credentials	Yes	Required	Medium
Managed Identity	No	Not needed	High
