App Needs Certificate Authentication? Upload Certificate Credential

Published on:
#entra id

A backend app needs to authenticate to Microsoft Entra ID.

It should not use a long-lived client secret.

The Microsoft Entra pattern is:

Create app registration -> generate certificate key pair -> upload public certificate -> keep private key secure -> authenticate with certificate

This is used when:

  • no user is present
  • the app runs as itself
  • the app can securely store or access a private key
  • a managed identity is not available
  • a client secret would be too weak for the environment

Certificate Credential vs Client Secret

A client secret is a shared password.

Anyone who has the secret can authenticate as the app until the secret expires or is revoked.

A certificate credential uses asymmetric cryptography.

The app keeps the private key.

Microsoft Entra stores the public certificate.

At sign-in time, the app signs a client assertion with the private key.

Entra validates that signature with the uploaded public certificate.

The private key is never uploaded to Entra.

Create or Open the App Registration

Go to:

Entra ID > App registrations

Create or open the application that needs certificate authentication.

Example:

CloudTrips-CertAuth-App

This app registration represents the workload that will request tokens.

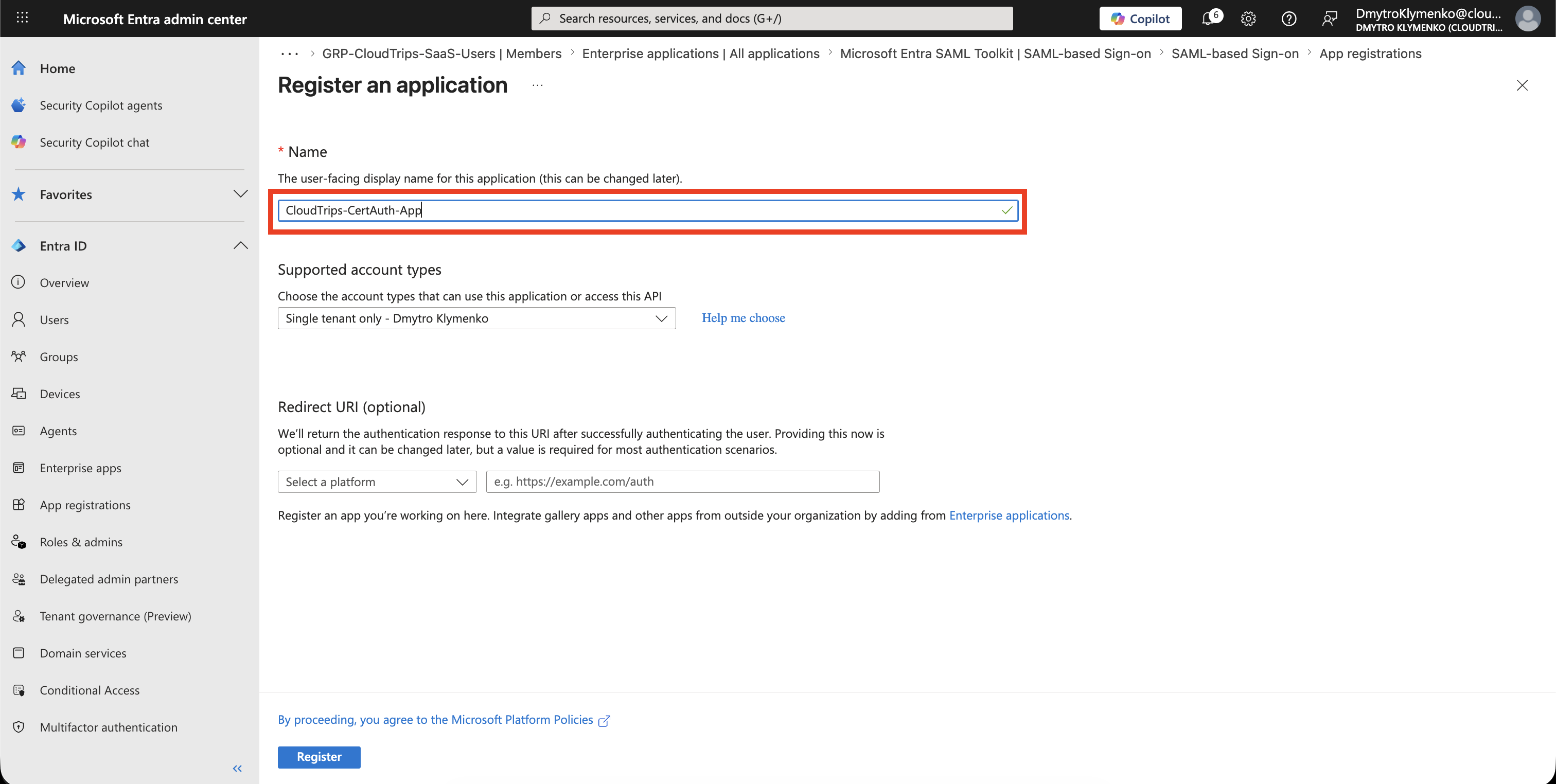

Microsoft Entra App registrations page showing the CloudTrips certificate authentication app

Check the App Identifiers

Open:

Overview

Keep these values for the application configuration:

Application (client) ID
Directory (tenant) ID

The app uses these values when it requests a token from Microsoft Entra ID.

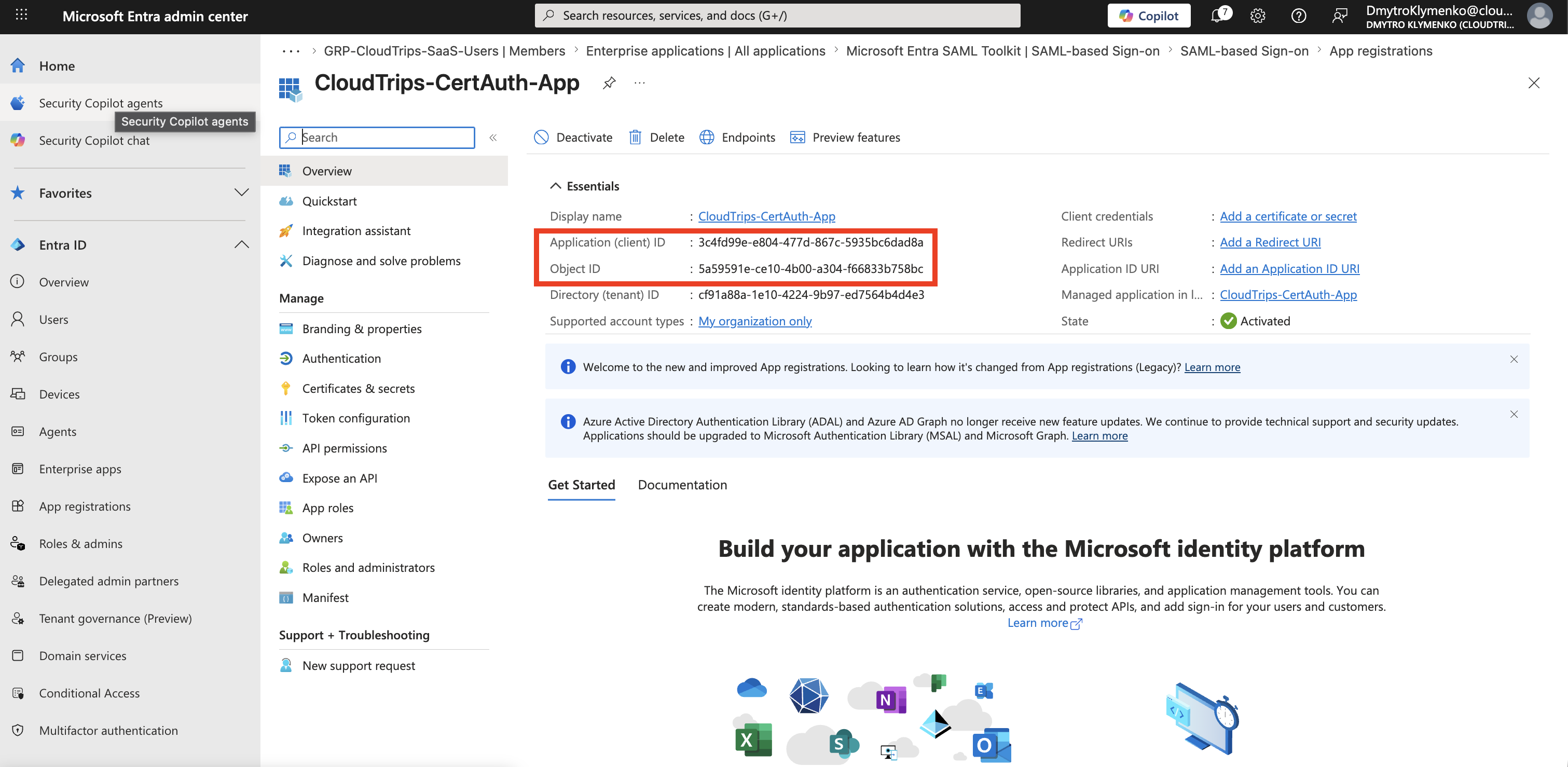

CloudTrips certificate app overview showing Application client ID and Directory tenant ID

Prepare the Certificate

Generate or obtain a certificate key pair.

For Entra app authentication, you upload only the public certificate file.

Common public certificate file formats include:

.cer
.pem
.crt

The application must keep the matching private key in a secure place, such as:

  • Azure Key Vault
  • a managed certificate store
  • a protected deployment secret store
  • a hardware security module, when required

Do not upload a .pfx file with the private key to Entra.

Open Certificates and Secrets

Inside the app registration, open:

Certificates & secrets > Certificates

Select:

Upload certificate

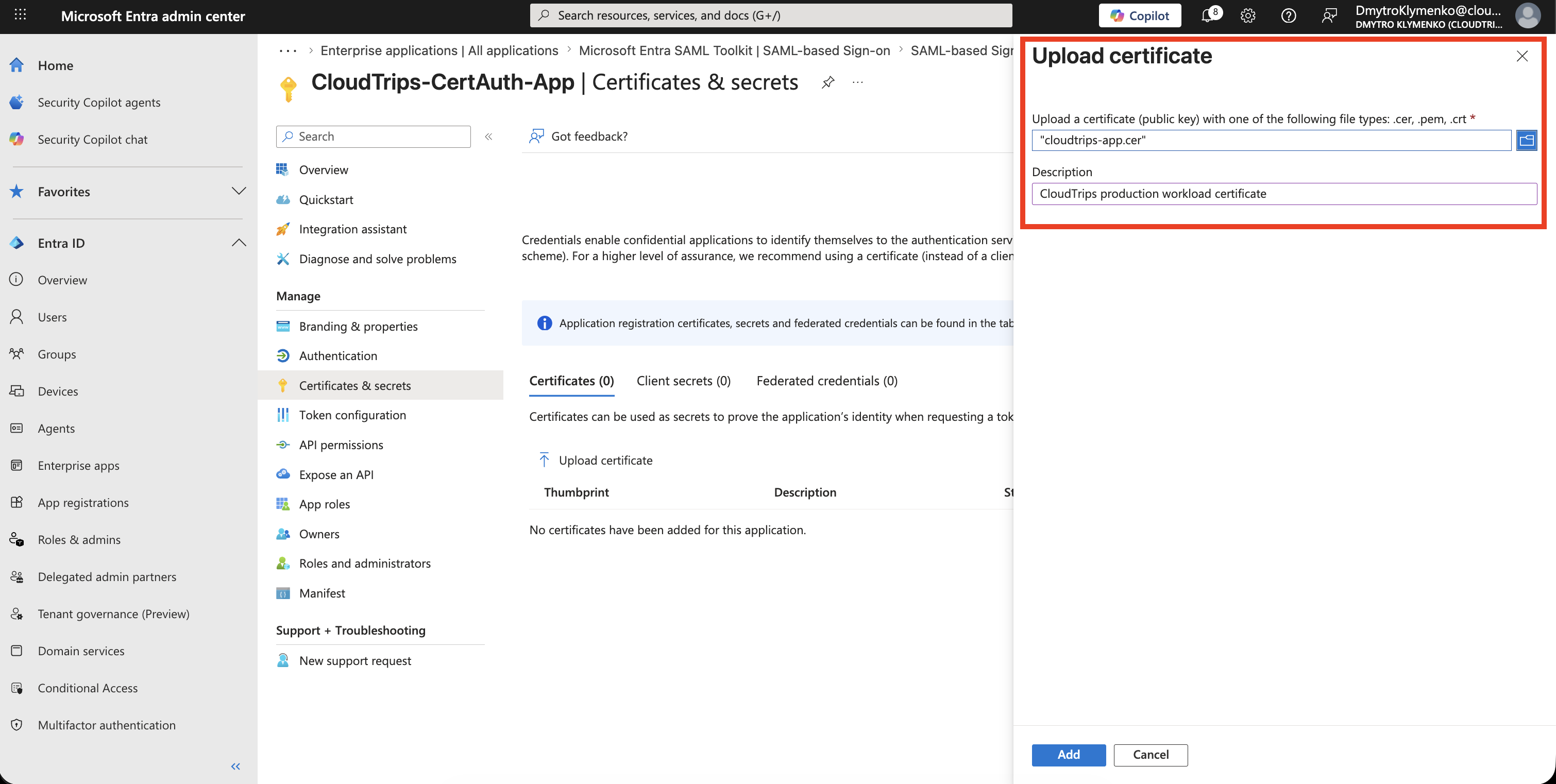

App registration Certificates and secrets page showing the Certificates tab and Upload certificate action

Upload the Public Certificate

Select the public certificate file.

Add a description that explains ownership or rotation purpose.

Example:

CloudTrips production workload certificate

Upload the certificate.

Upload certificate blade showing selected public certificate file and description

Confirm the Certificate Credential

After upload, Entra shows the certificate credential.

Check:

Thumbprint
Start date
Expires
Certificate ID

The thumbprint is useful when the application selects a certificate from a certificate store.

The expiration date is operationally important.

If the certificate expires, the application can no longer authenticate with that credential.

Configure the Application

The application needs:

Tenant ID
Client ID
Private key or certificate reference
Certificate thumbprint or key identifier

The exact setting names depend on the runtime and identity library.

For example, an app using Microsoft Authentication Library can authenticate with:

client_id
tenant_id
private_key_certificate
scope=resource/.default
grant_type=client_credentials

The important difference from a secret-based app is:

client_secret is not used

Certificates tab showing uploaded certificate credential with thumbprint and expiration date

Test Certificate Authentication

Run the workload or a small token request test.

The app should request a token using the certificate credential.

At runtime, the app signs a client assertion with the private key.

Microsoft Entra validates that assertion against the uploaded public certificate.

If validation succeeds, Entra issues an application token.

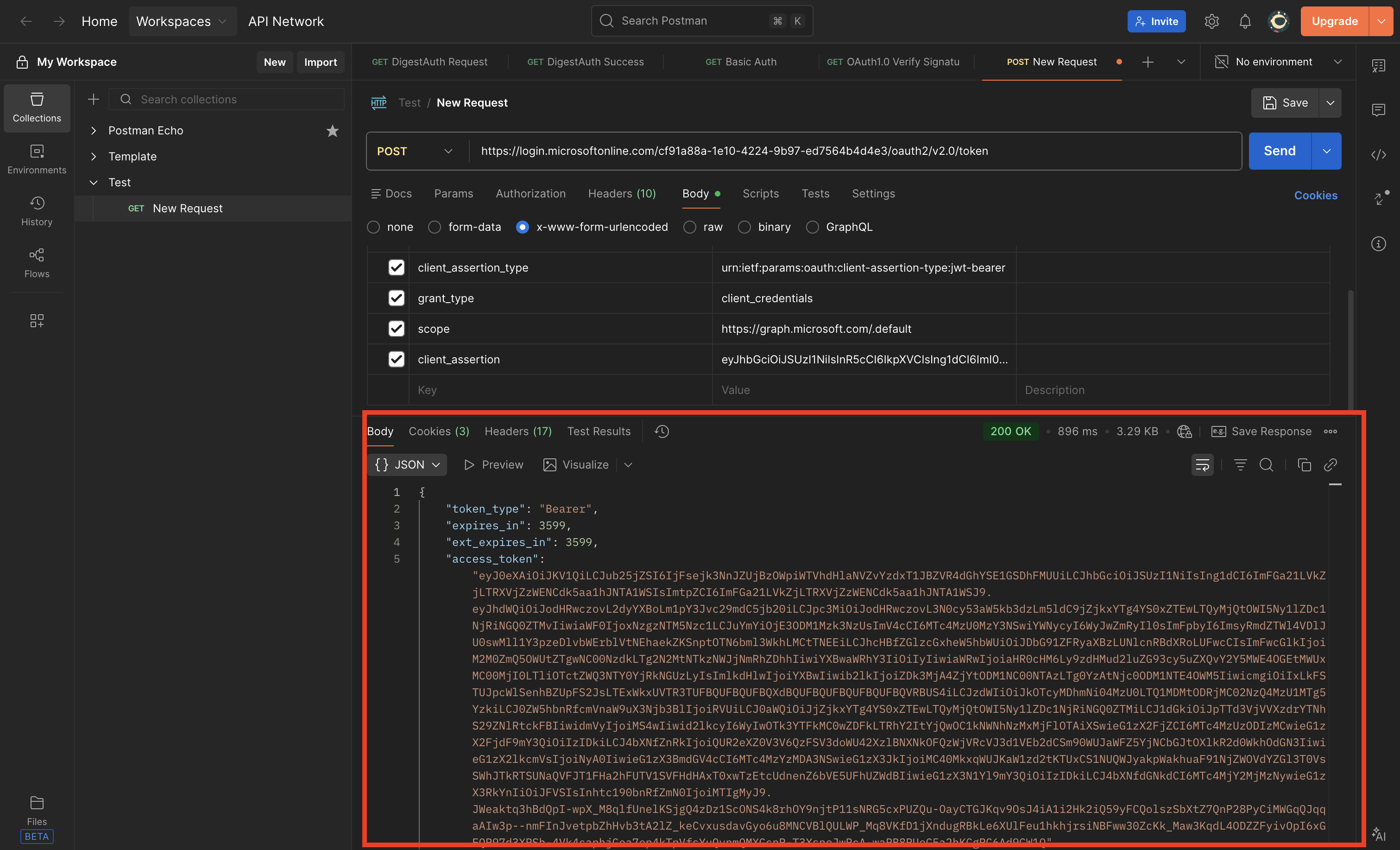

Postman token request showing tenant ID, client ID, client assertion, and no client secret

Rotate Before Expiration

Certificate credentials need rotation planning.

A safe rotation pattern is:

  1. Upload a new public certificate before the old one expires.
  2. Deploy the app with the new private key or certificate reference.
  3. Confirm token requests work with the new certificate.
  4. Remove the old certificate credential after the rollout is complete.

This avoids downtime during rotation.

Enterprise Note

Certificate authentication is stronger than a client secret, but it is not magic.

The security depends on how well the private key is protected.

Recommended checklist:

  • upload only the public certificate to Entra
  • store the private key in a secure location
  • restrict who can read or export the private key
  • monitor certificate expiration
  • rotate certificates before expiry
  • remove unused certificate credentials
  • prefer managed identity or workload identity federation when the platform supports it
